RAM Mounts Quick-Grip™ Waterproof Wireless Charging Holder - RAM Mounts

Available on Pre-order / Back Order. Check out how that works here

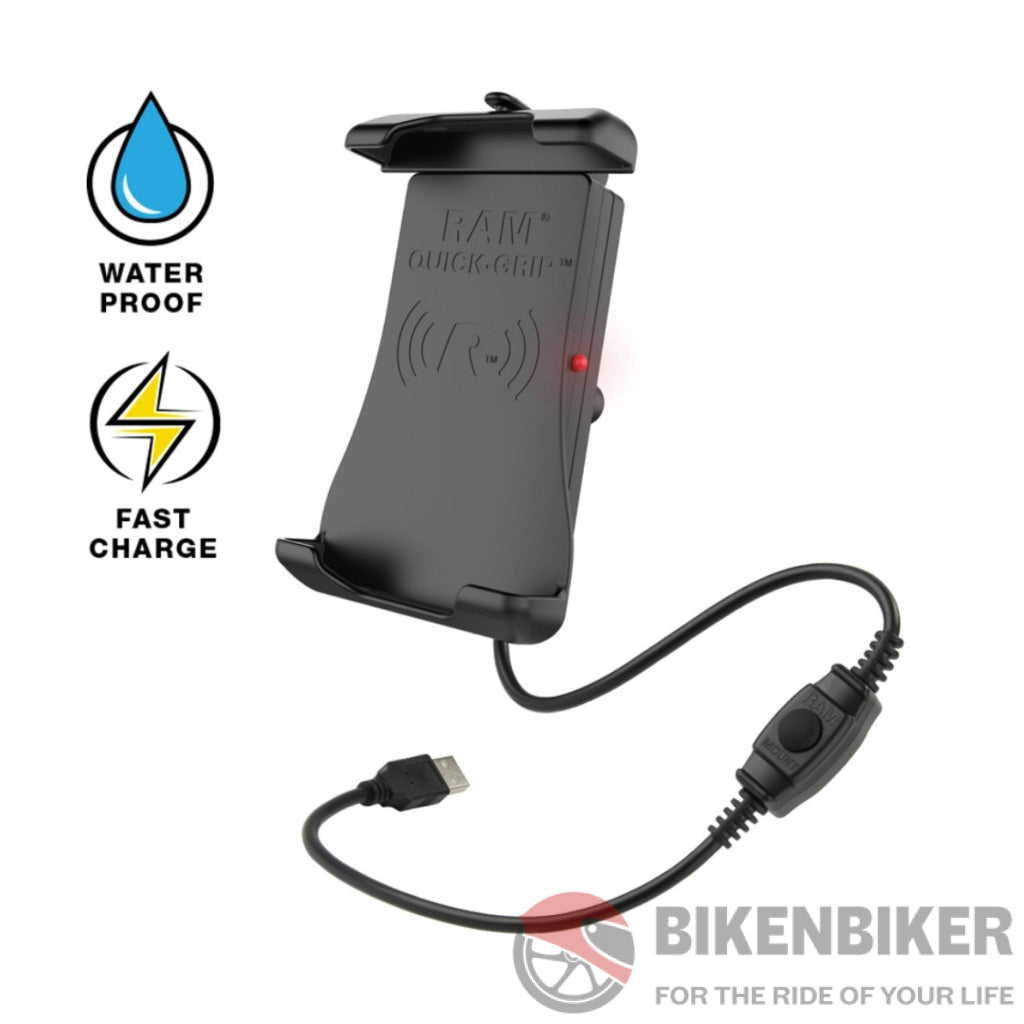

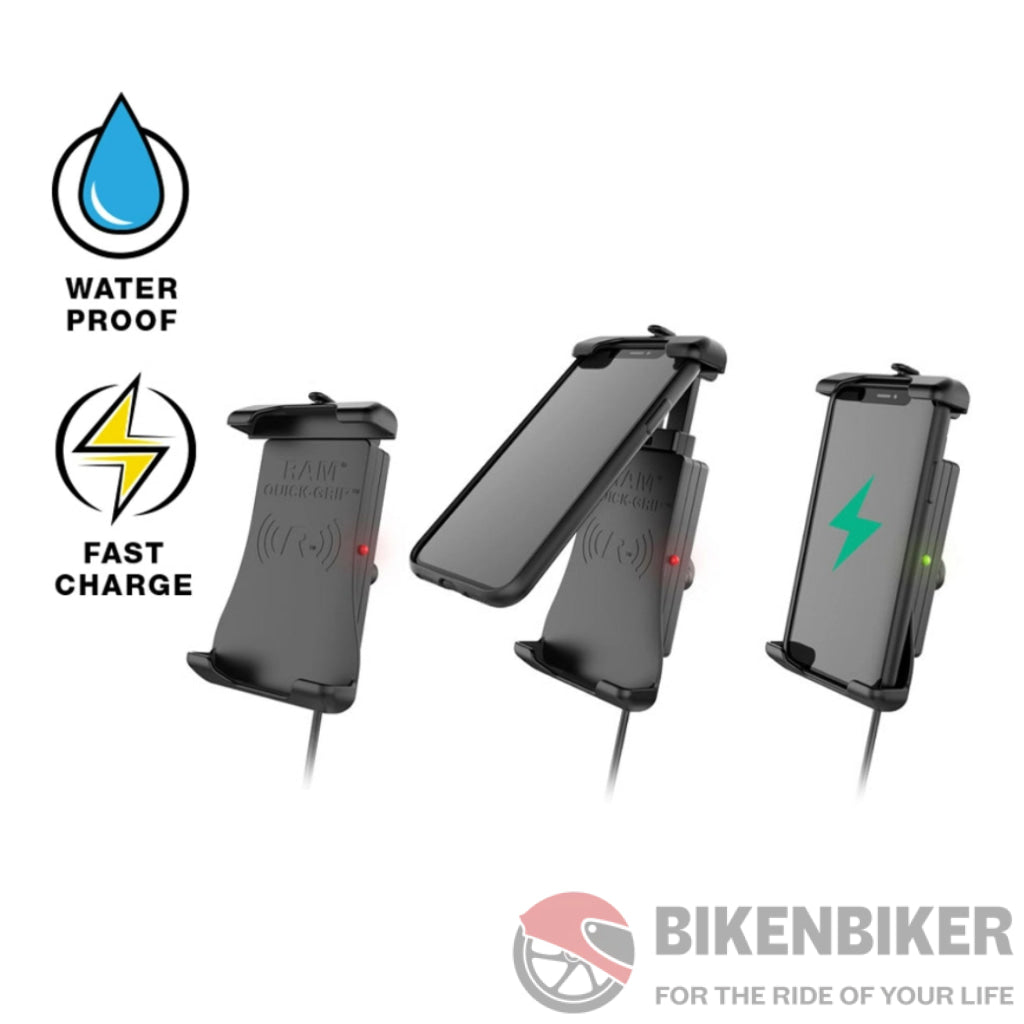

The RAM Quick-Grip Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.

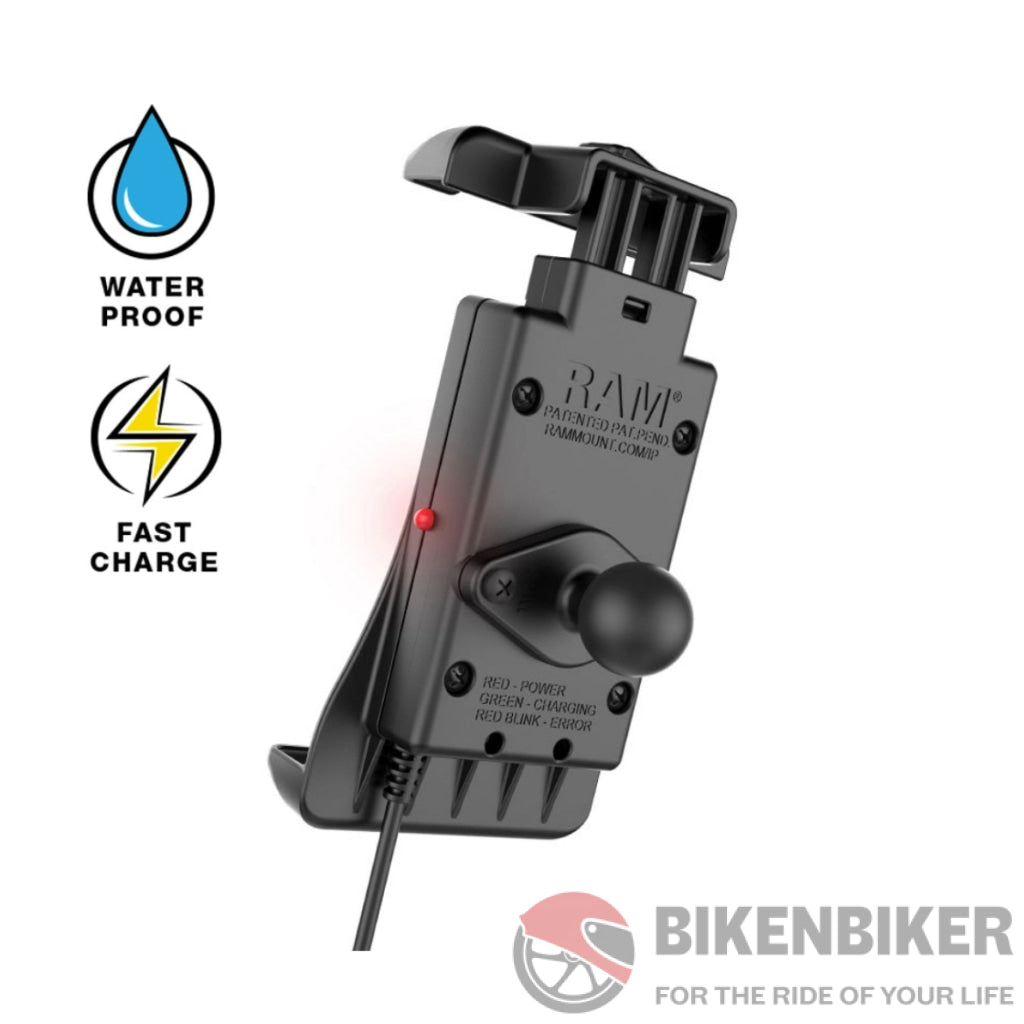

This RAM Quick-Grip Wireless kit for vehicles includes a B size diamond base featuring a 25.4mm rubber ball – perfect for attaching to your choice of B size double socket arms and ball bases for mounting in your preferred location. The RAM diamond ball base is compatible with 2-hole AMPS pattern. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments. RAM Mounts are backed by lifetime warranty and RAM electronics is backed by 1-year warranty with proof of purchase required.

NOTE:

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

iPhone 12 products support a new and proprietary wireless charging standard not supported in this product. User experience might include what is perceived to be slower charging, however this is due to higher power consumption of the iPhone 12 in certain use cases.

Required Accessories

Phone Cradle and ball base only. RAM Arm Mount and Base sold separately.

Highlights

Fully waterproof Qi wireless charging on the go (10W maximum output)
RAM Quick-Grip design allows for single-handed docking and removal of phones
RAM diamond ball base compatible with 2-hole AMPS pattern
RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty

---

Product Specifications

Material: High strength composite / Stainless Steel
Color: Black
Holder Dimensions:
Height Range: 142.87mm – 168.27mm
Max Width: 79.37mm
Depth: 17.78mm
Ball/Socket Size: B Size (25.4mm)
Power Specifications:
Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
Weight: 0.52kg
Maximum Load:
Standard Use: 0.90kgs
Heavy-Duty Use: 0.45kgs
Certifications: FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

What’s in the box?

RAM Quick-Grip Waterproof Wireless Charging Holder x 1
RAM Diamond Ball Base x 1
Assembly Hardware including:
Safety Tether x 1
Silicon sleeve for USB waterproof connection x 1
1.2 Meter USB Extension Cable x 1
Small zip ties x 4
Large zip ties x 2
Mounting Instructions

Part No. - RAM-HOL-UN14WB

Brand - RAM Mounts, USA

Country of Origin: UNITED STATES OF AMERICA
Generic Name: Phone Accessories
Quantity: 1N
Country of Import: UNITED STATES OF AMERICA
Warranty: ONE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
