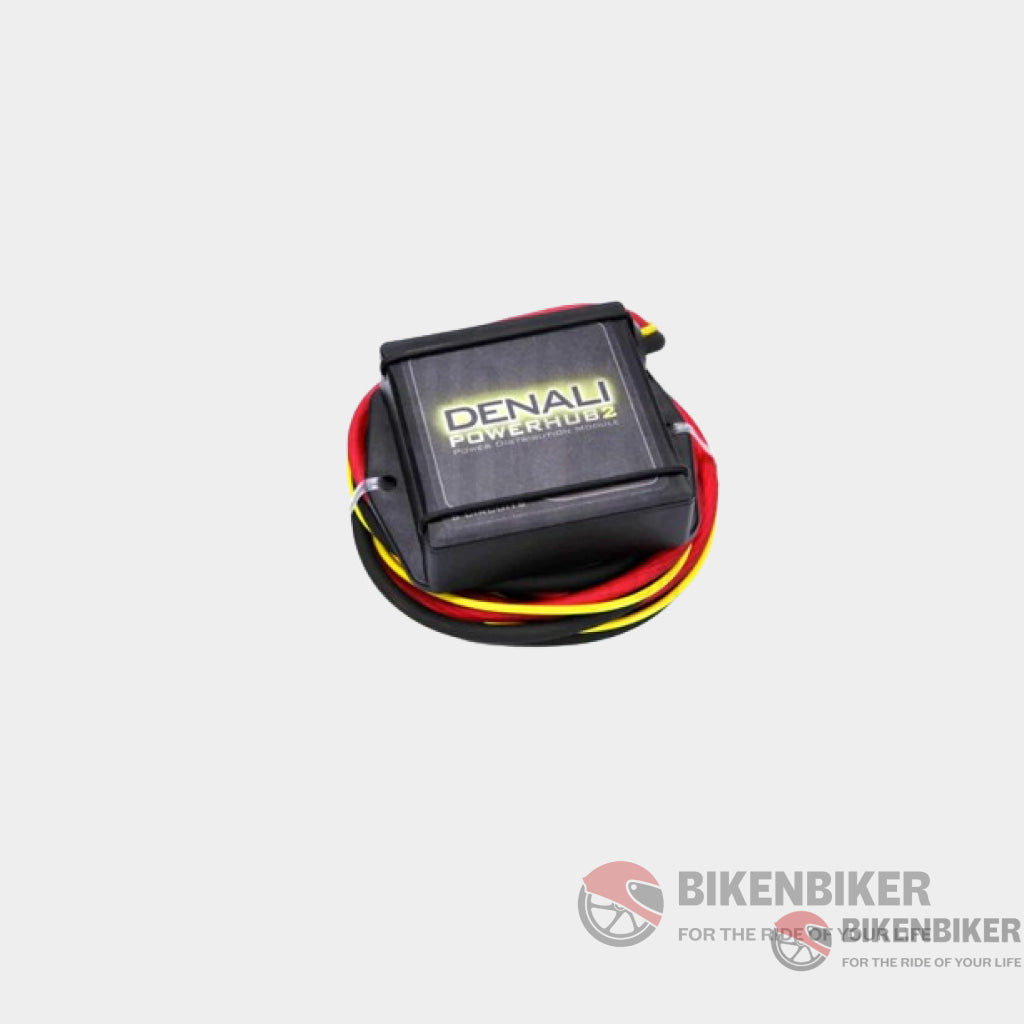

The PowerHub2 Power Distribution Module, manufactured by Denali, allows you to safely connect up to 6 electronic devices to your motorcycle in a clean, professional manner. It is CAN-Bus compatible and includes six 15-amp rated and fused outputs, six ground posts, and a plug-and-play wiring harness for direct battery hookup. Each of the six outputs can be individually set as “always on” or “switched” on/off with the ignition of the motorcycle. Instead of attaching multiple ring terminals to your battery, use a PowerHub2!

The CAN-bus safe Denali PowerHub2 has been designed to allow simple and easy installation of electrical components. Each unit has six individually fused outputs. These are not your ordinary outputs. Simply plug the fuse in to the left or the right on the circuit board to make the accessory live all of the time or switched on/off with the bike’s ignition.

The entire unit is rated for 30 Amps (360 watts). Each of the six circuits can handle up to 15A (180W) each – without exceeding a total sum of 30 Amps simultaneously.

Highlights

Replaceable 30 amp Tyco/Bosch micro relay
Water-resistant
Compact
Durable
Choice between switched and constant power

Required Accessories

Mini ATM fuses are not included!

Additional Information / Product Reviews

 

Source: Twisted Throttle

Product Specifications

Dimensions: 76 mm x 102 mm x 25 mm
6 circuits can handle up to 15A (180W) each
CANbus-compatible
60 inch long 10 gauge wiring harness with Posi-lock connector

What’s in the box?

PowerHub2 fuse block x 1
Ring terminals x 2
Wiring harness for connecting PowerHub2 to battery (includes switched “trigger” wire with Posi-tap connector)
Self-adhesive hook and loop pad for providing a quick-release attachment method for connecting the PowerHub2 to a flat surface

Compatibility Warning

When installing the PowerHub2 on BMW CAN-Bus equipped motorcycles, use either the 194 Marker Bulb CAN-Bus adapter available separately, or tap the original BMW power socket hot wire.

Brand - BIGBAD BIKERS

Part No - ELC.00.30000

Country of Origin: USA
Generic Name: Accessory Manager
Quantity: 1N
Country of Import: United States of America
Warranty: ONE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
Importer Address: Big Bad Bikes Ground Floor No.3, 1st Main Rd, 4th Block, HBR Layout, Bengaluru, Karnataka 560043. Contact Customer Service Manager (at above address) Phone: +91 844 844 9050 Email: customercare@bikenbiker.com
