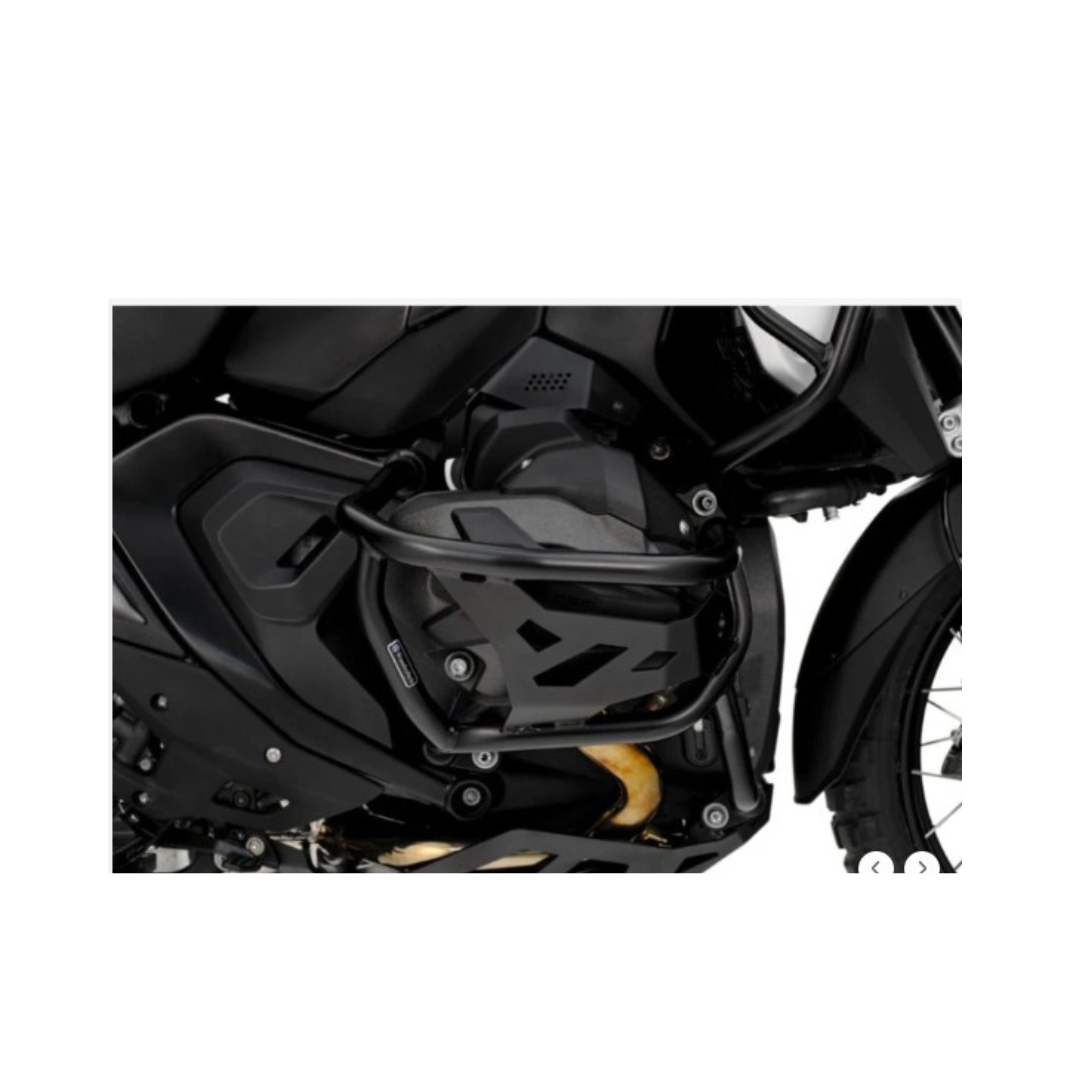

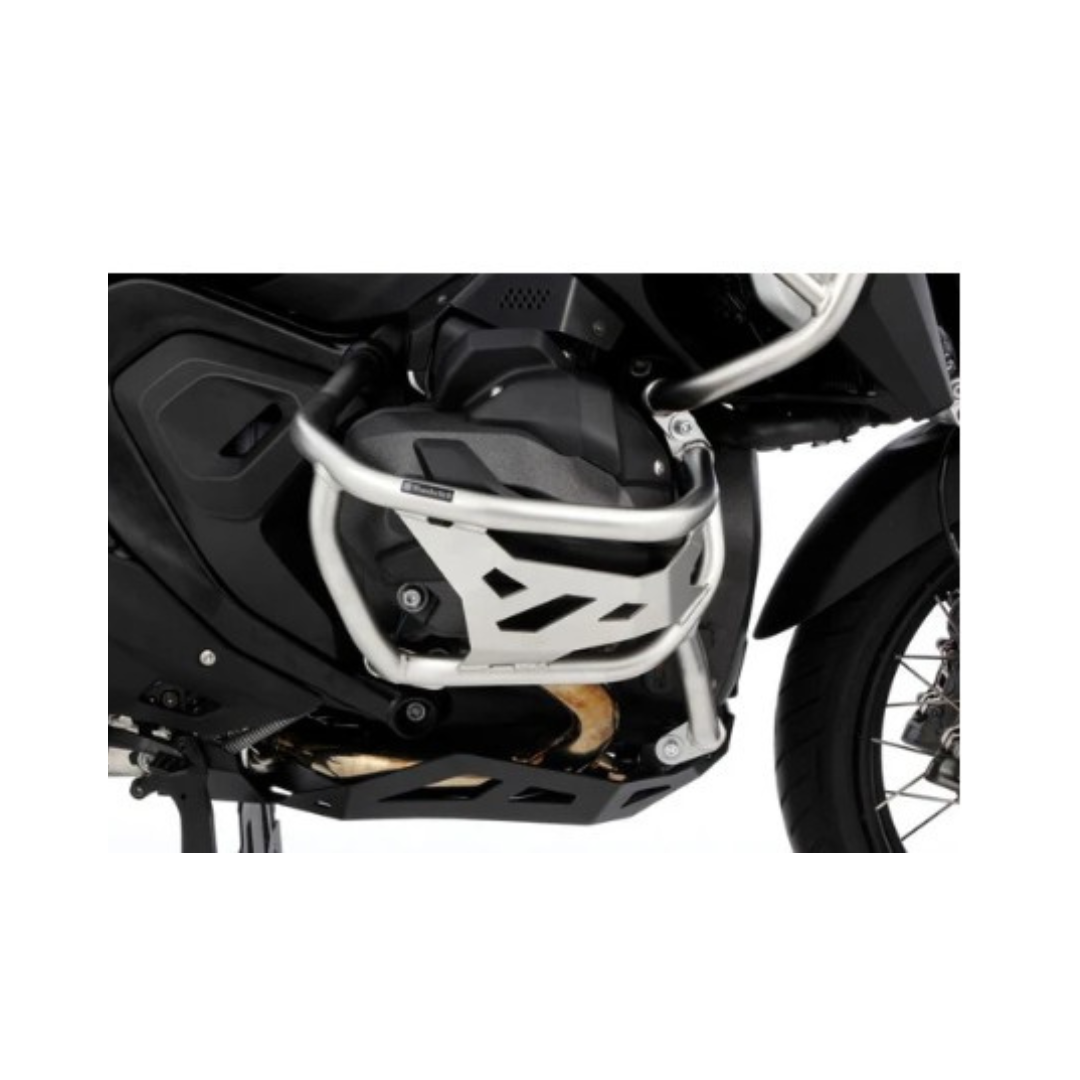

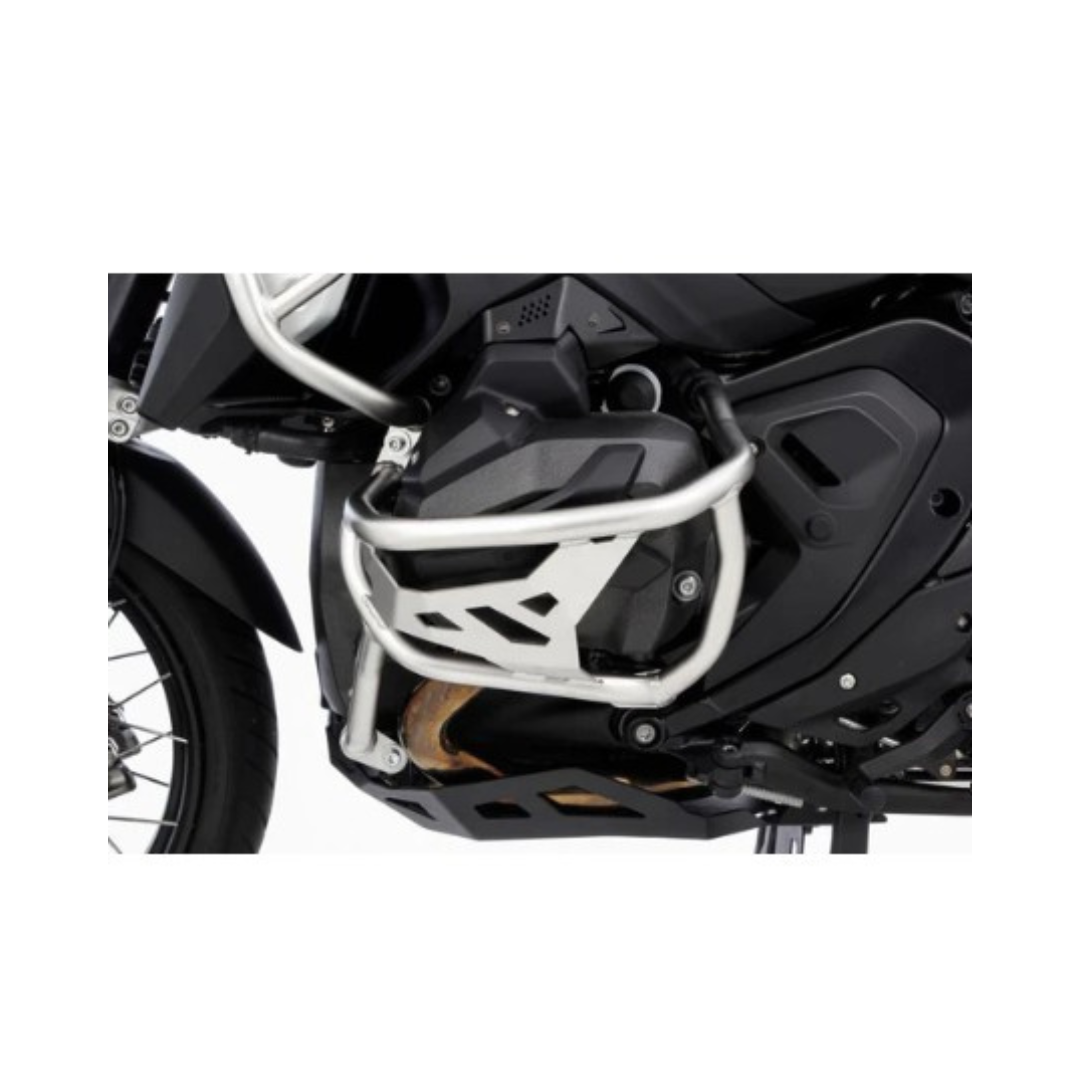

Engine Crash Bar (ULTIMATE PRO) For BMW R1300GSA 2024 Onwards- Wunderlich-13200-000

Wunderlich ULTIMATE PRO Engine Protection Bars are uncompromisingly designed for their protective effect for adventure riding

Function and Product Features

• Wunderlich ULTIMATE Engine Protection Bars are uncompromisingly designed for their protective effect for adventure riding
• The ULTIMATE PRO features an additional, solidly constructed PROtection plate compared to the ULTIMATE Engine Protection Bars,
  • which enhances the protective effect for the cylinder head and valve cover
  • whose tool design convincingly underscores the adventure look
• Maximum protection through additional structural bracing that significantly increases the rigidity of the protection bars
• The perfect protection of cylinders, valve covers, and both lambda sensors reduces the risk of expensive damage to the motorcycle itself
• Even distribution of forces on four mounting points per side of the vehicle
• Bars are precisely contoured to match the boxer engine
• No impairment of ground clearance
• Openings allow spray or water to drain freely during water crossings
• Plug & Play fit: easy installation with comprehensive mounting instructions

Note

• Also fits in combination with the original BMW cylinder head cover protection

Technical Data

• Material
  • High-quality stainless steel with high tensile strength and elongation at break, carefully handcrafted, precisely shaped radii, and clean weld seams, precise connections
• Dimensions
  • Tube diameter 25 millimeters
  • Component thickness PROtection plate 3 millimeters

ULTIMATE PRO – when it matters

World-traveling adventure riders know this: There are days when the motorcycle falls more than once on its side because the conditions are unimaginable in cultivated and civilized Europe with its developed road network. Or because the physical exertion, due to heat or cold, can simply sap your strength and stamina to keep the bike upright. Beyond civilization, it is therefore even more important to be on the road with reliable equipment that can handle the material stress associated with it and just endure without failing, because it can be vital to stay mobile, always moving, and independent to minimize the risk for yourself as much as possible.

This Wunderlich ULTIMATE PRO Engine Protection Bar is specifically designed for adventure riding.

It reliably protects not only the cylinders and valve covers but also both lambda sensors. The comprehensive protection concept increases passive safety and thus the joy of riding. In the event of a fall or accident, the forces acting are optimally distributed over the protection bar structure to the load-bearing mounting points, so that peak forces and moments are avoided and material stress is effectively reduced. Compared to the ULTIMATE Engine Protection Bar, the ULTIMATE PRO features an additional filler plate that further enhances the protective effect.

The additional, four-times welded PROtection plate of the PRO version made of stainless steel has a solid (and conspicuous) component thickness of three millimeters. It has cutouts, stiffens the tube structure of the engine protection bar, and simultaneously extends the immediate protection for the cylinder head and valve cover. Cutouts not only emphasize the tool design in the adventure look, but they also allow water to drain directly after water crossings.

The engine protection bar structure is made of 25-millimeter precision stainless steel tubing. The tube segments are formed on CNC tube bending machines and then cleanly welded. Visually, the protection bar integrates into the design of the motorcycle and fits into the distinctive appearance.

With our protection bars, the protective function and product design are paramount. The engine protection bar in stainless steel enhances your BMW in a high-quality manner. The stainless steel surface is glass bead blasted and additionally electropolished.

Brand -Wunderlich

Country of Origin: Germany
Generic Name: Crash Guard
Quantity: 1N
Country of Import: Germany
Warranty: ONE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
