Auxiliary DL9 LED Lights White Only Set Of 2-Denali-DNL.DL9.050.W.2

An absolute beast that cares more about destroying darkness than looking pretty!

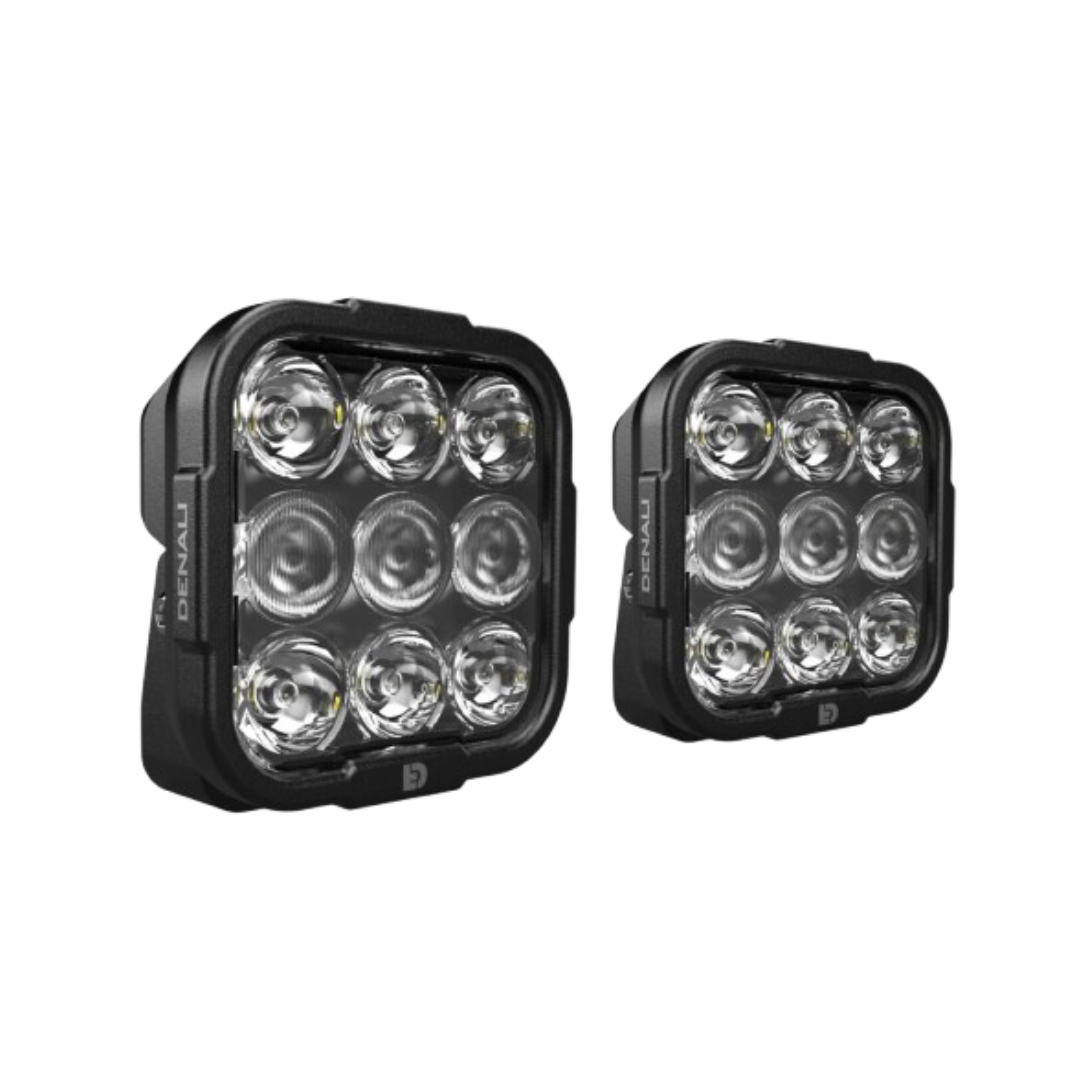

Denali Electronics brings you the DL9 Auxiliary LED Lights – White. The DL9 is an absolute beast with 7,650 lumens per light (15,300 lumens per pair) and cares more about destroying darkness than looking pretty. The largest and most powerful light pod in the DL-Series lineup, the DL9 is built to deliver unmatched visibility when conditions are at their toughest. The 9-LED square profile is a bit big for most bikes but looks right at home on heavy-weight ADV bikes that want to achieve the maximum possible light output without breaking the bank.

Denali’s DL Series Driving Lights are the brightest and most durable motorcycle driving lights that won’t break the bank. Engineered based on a decade of customer feedback, these Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and Denali’s signature dimming technology at a price point that is more approachable to new riders, younger riders, and Denali’s rapidly growing international customer base!

How can they be this good and so affordable at the same time? Thanks to Denali’s single-piece TIR optic and robotically sealed construction, they are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to their top-bin LEDs, circuitry, or optical design. The result is a indestructible & submersible light pod that can deliver more light per dollar than any of Denali’s competitors. All DL Series lamps are available in white, amber, or selective yellow beam options and are plug-&-play compatible with all Denali lighting harnesses and controllers.

Key Features include:
HiDrive LEDs 15,300 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
Oversized TIR Optics – Perfected Hybrid Driving Beam – Denali’s proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving their driving beam unmatched distance and width from the most compact housing possible.
DataDim™ Plug-&-Play Dimming – Denali’s signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all Denali light harnesses, DialDim, and CANsmart Controllers.
DrySeal™ Sealed Beam Construction – Denali’s patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
Overbuilt Not Overpriced – Denali’s 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while their Polycarbonate lenses are reinforced with UV hard coating.
ECE Compliant Driving Beam – Denali’s hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not compliant for street-legal high beam use.

Note:
– THIS SKU ONLY HAS LED LIGHT PODS INCLUDED. NO WIRING HARNESS AND SWITCH ARE INCLUDED
– DL-series lamps are not compatible with DENALI fender mount LAH.00.10700.B
– This is a Universal Fit Item. It is designed to fit many vehicles. Universal products may require a vehicle-specific fit kit (sold separately) or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Please check the product description and installation instructions for requirements.

Highlights

HiDrive LEDs 15,300 Lumens Per Pair
Ideal for heavy-weight ADV bikes
DataDim™ Plug-&-Play Dimming
DrySeal™ Sealed Beam Construction ensures 100% waterproof submersible performance even when connectors are removed
Robust and durable build – The 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while the Polycarbonate lenses are reinforced with UV hard coating
Pods ONLY

Required Accessories

Make sure you choose an appropriate wiring harness (see the suggestions listed below) to go along with these lights.

Wiring & Switching Options

Don’t forget to choose the best wiring harness and lighting control option for your vehicle on your budget! Select from the options below or click on the links below to learn more about each of Denali’s wiring and switching options. Please be sure to add one of these options to your light pods to complete your Denali lighting kit!

Standard Wiring Harness– Robust, inexpensive, low-profile waterproof switch – the best option for a basic single intensity install
Automotive Wiring Harness– Robust, added length, and a flush mount illuminated rocker switch for dash mounting
Premium Wiring Harness– Over molded wire, and a premium illuminated switch with handlebar mounting kit
DataDim Dual-Intensity Controller– Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
DialDim Universal Lighting Controller– The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!

Product Specifications (Single | Pair)

LED’s: Cree XPL HI (8W each)
Watts: 72W | 144W
Amp Draw: 6A | 12A
Raw Lumens: 7,650 | 15,300
Beam Distance: 421m (1380 feet) | 560m (1835 feet)
Beam Width: 70m (230 feet) | 93m (306 feet)
Connector: DataDim Compatible 3-wire DT
Color Temperature: 6000K
Operating Voltage: 9-32 VDC
Pod Size: 114.3 mm x 114.3 mm Square x 50.8 mm Deep
Pod Weight: 0.99 kg | 1.99 kg
IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
EMC: R10, CISPR 25, CE, UKCA Compliant

What’s in the box?

DENALI DL9 Auxiliary LED Lights – White – Lights Only – Set of 2 x 1 pair
3-wire pigtail x 2

Brand -Denali

Country of Origin: South Korea
Generic Name: Auxiliary Lights
Quantity: 1N
Country of Import: United States of America
Warranty: ONE YEAR FROM DATE OF INVOICE
Best Use Before: 10 years from date of manufacture
